PRODUCTS

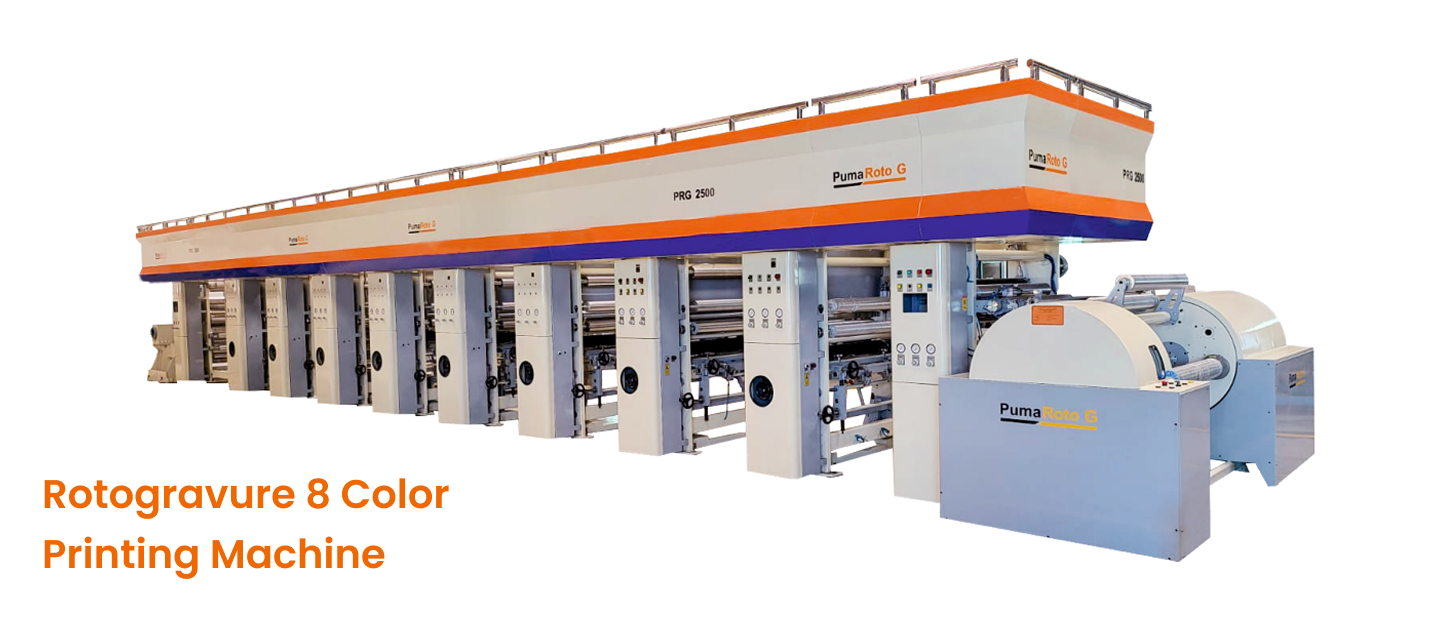

Rotogravure Printing Machines

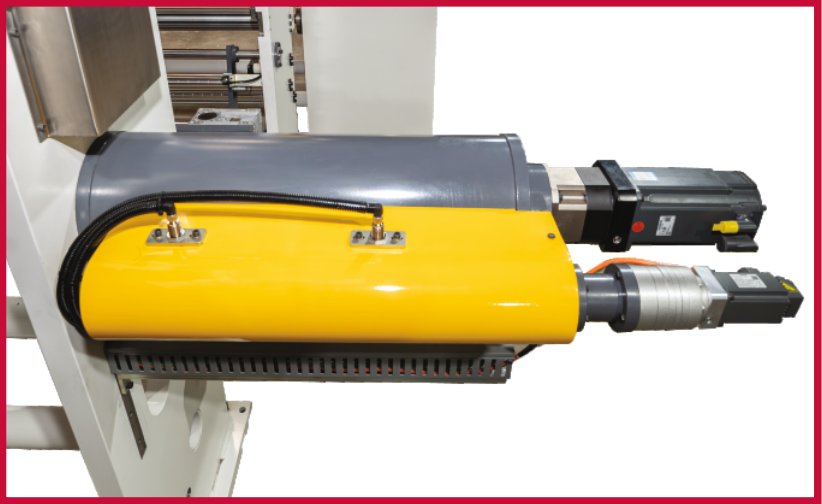

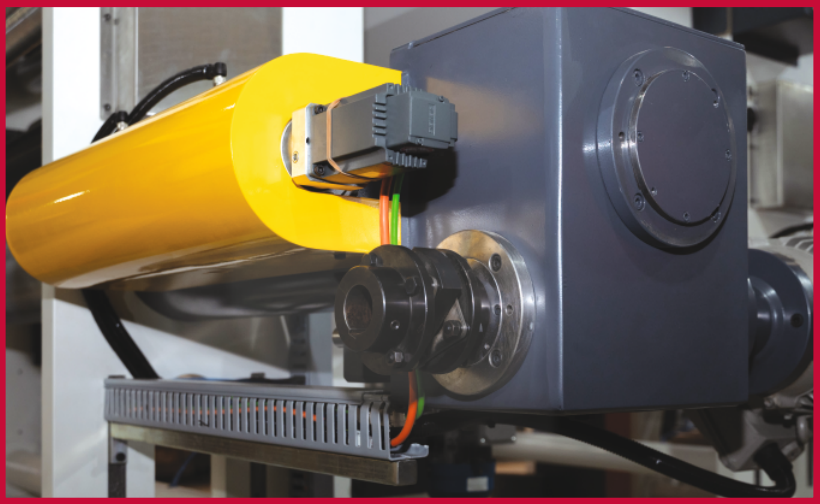

This rotogravure printing machine is ideal for both shrink sleeve and flexible packaging applications. The turret-type unwind and rewind units with automatic splicing enable continuous production, minimize waste and maintain rated speeds. Each printing unit is driven by a servo motor (ELS) with precise control for accurate registration. The adjustable doctor blade system ensures excellent print quality. Equipped with a PLC system and HMI, the machine offers easy, smooth and user-friendly operation.
PLC - Station 1
- Printing speed control
- Printing parameter setting
- Operation parameter setting
- Driver status monitoring
- Production additive memorizing
- Malfunction alarm information
- Tension information monitoring
PLC - Station 2
- Automatic control of unwind tension
- Diameter detecting control
- Dancer roller tension control
- Automatic cutting and roll change
- Jointing surface sensing control
- Automatic pre-drive jointing
- Automatic control of infeed tension
- E/P transducer control
PLC - Station 3
- Automatic control of rewind tension
- Decreasing tension control
- Dancer roller tension control
- Automatic cutting and roll changing
- Non-stop roll change
- Automatic product length counting
- Automatic control of outfeed tension
- E/P transducer control

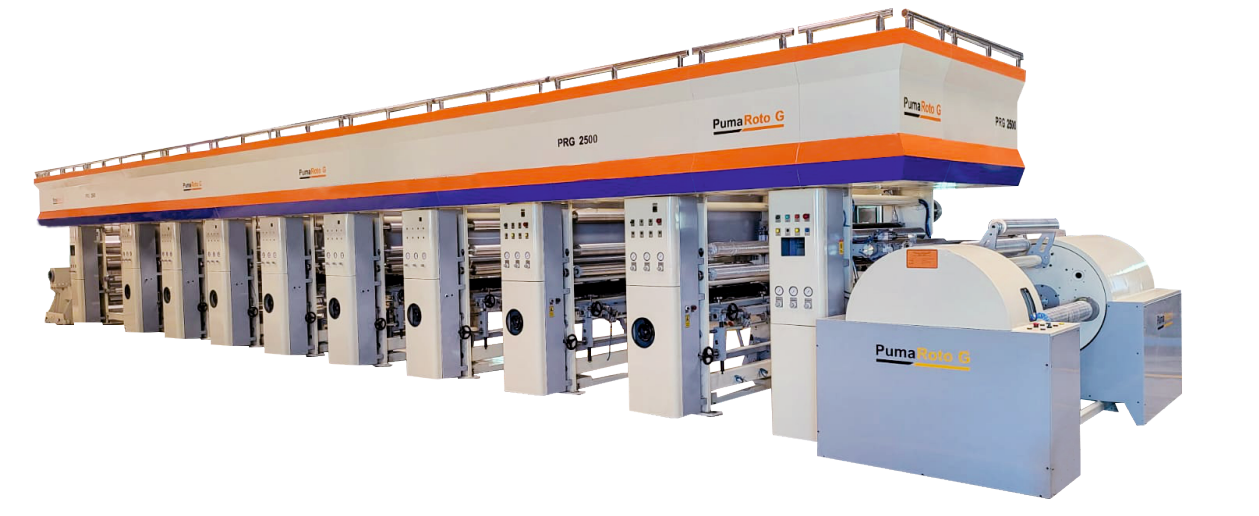

PRG 2500 MLS & PRG 3500 ELS – Technical Specifications
| Tech. Spec. | PRG 2500 MLS | PRG 2500 MLS Shaftless | PRG 3500 ELS |
|---|---|---|---|
| No. of Colours | Up to 8 / 10 / 12 | Up to 8 / 10 / 12 | Up to 8 / 10 / 12 |
| Printing width - max | 1100 mm / 1300 mm | 1100 mm / 1300 mm | 1100 mm / 1300 mm |
| Printing Speed - max | 250 mtrs/min. | 250 mtrs/min. | 350 mtrs/min. |
| Type of Printing cylinder | Shafted | Shaftless | Shaftless |
| Type of Impression Roller | Integral | Shaftless checking | Shaftless checking |
| Substrates | Polyester, PET, BOPP, LDPE & Paper | Polyester, PET, BOPP, LDPE & Paper | Polyester, PET, BOPP, LDPE & Paper |
| Circumference of Printing Cylinder | 350 mm to 800 mm | 400 mm to 800 mm | 450 mm to 900 mm |
| Heating Media | Thermic Fluid / Hot air generator / Electric heater | Thermic Fluid / Hot air generator / Electric heater | Thermic Fluid / Hot air generator / Electric heater |
| Area requirements (L x W x H mtrs) | 24 x 7 x 4.5 | 24 x 7 x 4.5 | 26 x 7.8 x 5.6 |
| Unwinder / Rewinder units | Duplex type Turret - Air Shaft with Auto Splicing | Duplex type Turret - Air Shaft with Auto Splicing | Duplex type Turret - Air Shaft with Auto Splicing |
| Cartridge type Changeover System | Tray System | Tray System | Tray System |
| Web Tension Control on Unwinder & Rewinder | Automatic | Automatic | Automatic |
| Web Tension Control on infeed & outfeed | Automatic | Automatic | Automatic |
| Automatic Colour registration control system | Optional | Optional | Optional |
| Web Viewing System | Optional | Optional | Optional |
| Turn Bar | Optional | Optional | Optional |
| Corona Treater | Optional | Optional | Optional |
| Control System | PLC based Digital | PLC based Digital | PLC based Digital |
| Main Drive | Mechanical Line Shaft | Mechanical Line Shaft | Electronic Line Shaft |
Advantages
- Superior high speed print quality
- Fast and operator friendly changeovers
- Cutting edge register system
- Fully-integrated inspection and quality control systems
- Sustainable use of inks and substrates
- Energy efficient drying system
Applications
- Wide range of food and non-food øexible packaging
- Dedicated for ölm and paper substrates
- Wide range of inks e.g. NC, PU, PVB, PVC also with metalic- and effect-pigments
- Gloss, matt and haptic lacquer applications

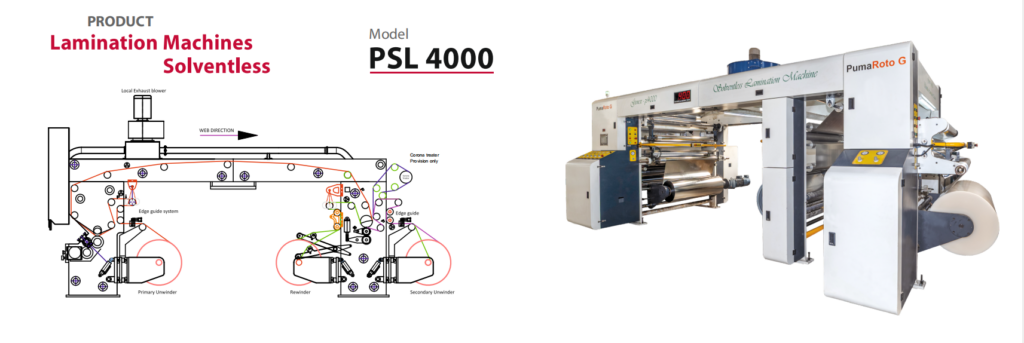

PSL 4000 – Solventless Lamination
| Tech. Spec. | PSL 4000 (Solventless Lamination) |
|---|---|
| Machine Speed | 400 / 450 mtrs/min. |
| Max. Working Width | 1100 mm / 1300 mm |
| Max. Roll Weight | 800 kgs |
| Type of Winder | Shaftless Chucking on LM guides |
| Substrates Loading | Self (By Hydraulic) |
| Unwind Core Dia | 3" & 6" |
| Max. Rewind Roll Dia | 800 mm |
| Substrates | PET, BOPP, Foil & Metallizer |
| Heating Media | Not applicable |
| Roller Heating | Water |
| Tension Feedback | Loadcell & Dancer |
| Dosing Unit | Included (Make Optional) |

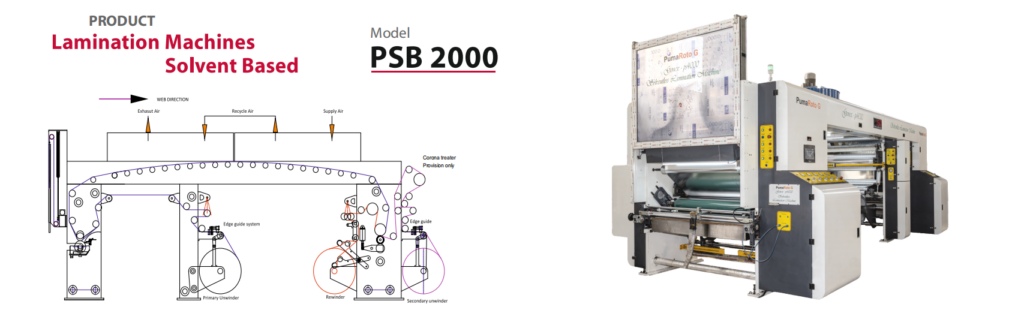

PSB 2000 – Solvent Based Lamination
| Tech. Spec. | PSB 2000 (Solvent Based Lamination) |
|---|---|
| Machine Speed | 200 mtrs/min. |
| Max. Working Width | 1100 mm / 1300 mm |
| Max. Roll Weight | 800 kgs |
| Type of Winder | Shaftless Chucking on LM guides |
| Substrates Loading | Self (By Hydraulic) |
| Unwind Core Dia | 3" & 6" |
| Max. Rewind Roll Dia | 800 mm |
| Substrates | PET, BOPP, Foil & Metallizer |
| Heating Media | Thermic Fluid / Hot air generator |
| Roller Heating | Water |
| Tension Feedback | Loadcell & Dancer |
| Dosing Unit | Not applicable |
